| Model No.: |
GHP |
Protect Wavelength: |
200-540nm |
| Transmittance: |
50% |
OD Value: |
OD5+@200-540nm |
| Material: |
Polycarbonate |
Suit for: |
266nm, 355nm, 405nm, 532nm Etc., |
| Style: |
Fashion |
Application: |
Excimer,Ultraviolet,Green Laser, Argon, KTP |
Advantage:
1. Comfort to wear.
2. Special for ergonomics, harmlessness, comforts, airing and flexibility.
3. Safety glasses with wrap-around design.

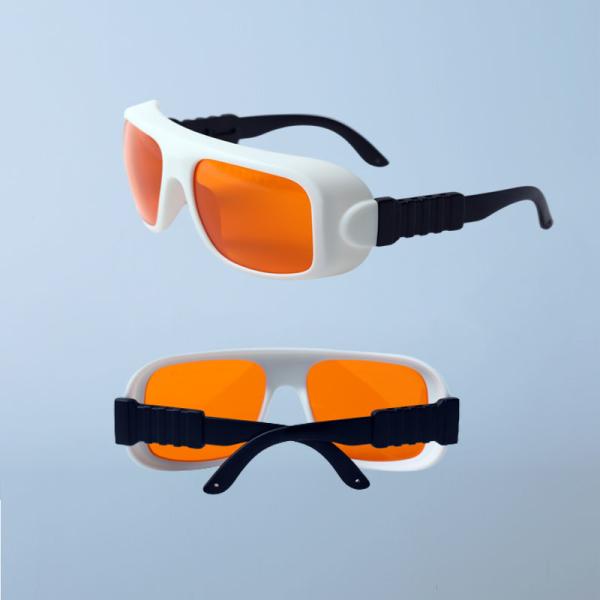

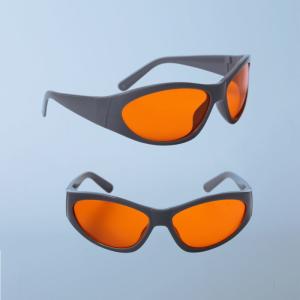

GHP laser safety glasses with Frame33 are mainly protect the laser wavelength: 200-540nm(OD5+)
The laser safety glasses can not be use against other kind of lasers rather than the above mentioned wavelength.
You should wear these glasses when you are working in an environment with Ultraviolet Light, blue, and green lasers,
Such as UV lamps, Green Laser, Excimer, Argon, KTP etc.,
Related Products:
Our factory laser safety glasses strictly according to ANSI Z136 and EN207.
IPL safety glasses and patient eyewear strictly according to EN169.
| Normal Type |
Typical For |
Transmittance |
O.D |
L-Rating |
| GTY |
532&1064nm |
30% |
200 - 540nm O.D 6+ & 900 - 1100nm O.D 5+ |
315 - 540nm DIRM LB5 & 900 - 1070nm DIR LB5 |
| RTD-3 |
635&808nm&980nm |
35% |
630 - 660nm O.D2+ & 800nm - 1100nm O.D5+ |
630 - 660nm DIR LB2 & 800 - 1100nm DIR LB5 |
| RTD-4 |
635&905nm&980nm |
37% |
630 - 660nm O.D3+ & 800nm - 830nm O.D3+ & 900 - 1100nm O.D5+ |
630 - 660nm DIR LB3 & 800 - 830nm DIR LB3 & 900 - 1100nm DIR LB5 |
| ADY |
755&808&1064nm |
40% |
740 - 1100nm O.D 5+ & 780 - 1070nm O.D7+ |
740 - 1100nm DIR LB5 & 800 - 1070nm IR LB7 |
| DTY |
980&1064&1320nm |
40% |
800 - 1700nm O.D 4+ & 900 - 1100nm O.D 5+ |
800 - 1400nm DIR LB4 & 1400 - 1700nm DI LB3 |
| YHP |
High Power 808&980&1064nm |
60% |
800 - 1100nm O.D 5+ & 1060 - 1070nm O.D 7+ |
800 - 1100nm DIR LB5 & 1000 - 1070nm IR LB7 |
| CHP |
10600nm |
90% |
9000-11000nm O.D 6+ |
9000-11000nm DI LB3 |
| IPL |
200 – 1400nm |
10% |
IPL Machine |
|
| YLW |
1064nm Laser Window |
40% |
800 -1100nm O.D 4+ & 1064nm O.D 6+ |
1064nm DIR LB5 |
Packing Details:
OEM/ODM service is available to us.
Professional gift box
Our Services:
1. Your inquiry related to our products or prices will be replied within 24 hours.
2. Well-trained & experienced staff are to answer all your inquiries in English.
3. Door to door shipping is avialable.
4. On-time delivery.
5. Own manufacturing &own quality control.
6. Factory competitive price.
7. OEM/ODM warmly welcome.
8. High quality products.
9. CE appproved.
10.Warranty :one year.
