| Model No.: | RTD-3 | Protect Wavelength: | 630-660nm & 800-1100nm |
| Transmittance: | 35% | OD Value: | OD2+@630-660nm & OD5+@800-1100nm |
| Material: | Polycarbonate | Suit for: | 635nm, 660nm, 808nm, 980nm etc., |
| Logo: | Customize Logo | Application: | Red Laser, 808nm 980nm Diodes |
Laser Safety Glasses RTD-3 Advantage:
1. Wavelength: 630-660nm&800-1100nm
2. Optical density: 630 - 660nm OD2+, 800 - 1100nm OD5+
3. Visible light transmittance: 35%
4. Available for: 635nm, 808nm, 980nm
5. According : CE EN207
6. Application: red lasers, 808nm diodes
7. Stable, clear and flexible PVC curved body, fits the face.
8. Safety Glasses for laser exposure in industrial, military and medical applications.
9. Wind-proof, Sand-proof

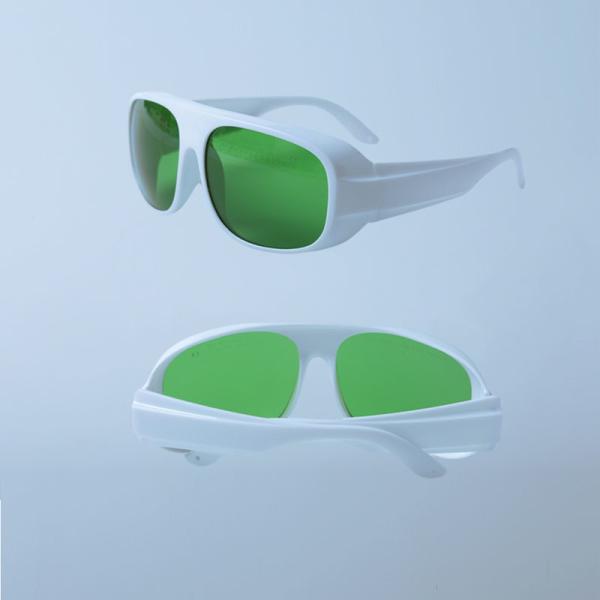

Four Frames #33 #36 #52 #55:
The lens of the glasses are made of macromolecule and laser absorber. The optical properties of the lens meet all demand of the standard EN 207.
Safe Packing:

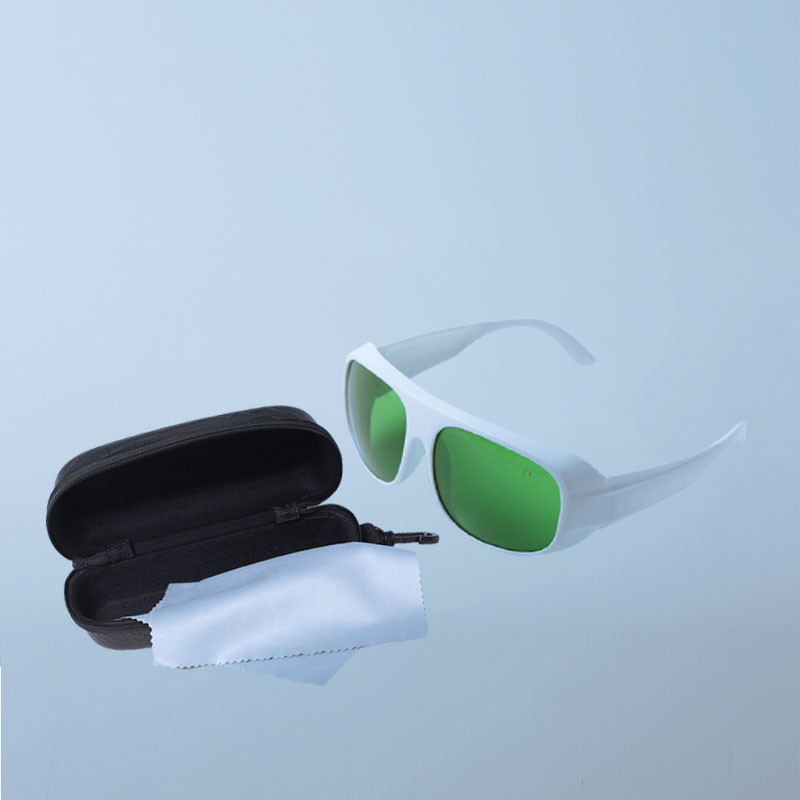

Each pair of safety glasses comes with a protective storage case and a cleaning cloth.
Related Products:
Our laser safety glasses are strictly in accordance with ANSI Z136 and EN207.
IPL safety glasses and patient eyewear are strictly in accordance with EN169.
| Normal Type | Typical For | Transmittance | O.D | L-Rating |
| GTY | 532&1064nm | 30% | 200 - 540nm O.D 6+ & 900 - 1100nm O.D 5+ | 315 - 540nm DIRM LB5 & 900 - 1070nm DIR LB5 |
| RTD-3 | 635&808nm&980nm | 35% | 630 - 660nm O.D2+ & 800nm - 1100nm O.D5+ | 630 - 660nm DIR LB2 & 800 - 1100nm DIR LB5 |
| RTD-4 | 635&905nm&980nm | 37% | 630 - 660nm O.D3+ & 800nm - 830nm O.D3+ & 900 - 1100nm O.D5+ | 630 - 660nm DIR LB3 & 800 - 830nm DIR LB3 & 900 - 1100nm DIR LB5 |
| ADY | 755&808&1064nm | 40% | 740 - 1100nm O.D 5+ & 780 - 1070nm O.D7+ | 740 - 1100nm DIR LB5 & 800 - 1070nm IR LB7 |
| DTY | 980&1064&1320nm | 40% | 800 - 1700nm O.D 4+ & 900 - 1100nm O.D 5+ | 800 - 1400nm DIR LB4 & 1400 - 1700nm DI LB3 |
| YHP | High Power 808&980&1064nm | 60% | 800 - 1100nm O.D 5+ & 1060 - 1070nm O.D 7+ | 800 - 1100nm DIR LB5 & 1000 - 1070nm IR LB7 |
| CHP | 10600nm | 90% | 9000-11000nm O.D 6+ | 9000-11000nm DI LB3 |
| IPL | 200 – 1400nm | 10% | IPL Machine | |
| YLW | 1064nm Laser Window | 40% | 800 -1100nm O.D 4+ & 1064nm O.D 6+ | 1064nm DIR LB5 |
CE Certificate:
Our laser safety glasses are all certificated by the EU National Laboratory with EN207.
Quality Control:
Our QC department is composed of 3 QC engineers and 5 QC assistants,with the expanding of our output,more QC staffs are needed. We strictly conduct international quality standards to meet the clients demands.
